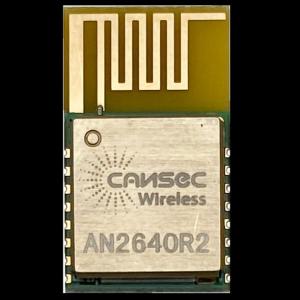

CC2640R2 TI RF Module Ble IoT Solutions Cansec AN2640R2SA-K

Ask Lasest Price
Brand Name :	Cansec Wireless
Model Number :	AN2640R2SA-K
Price :	USD 2.78$ per piece
Payment Terms :	T/T
Supply Ability :	2000000 pieces per year
Delivery Time :	3~6 weeks

Add to Cart

Product Details
Company Profile

CC2640R2 TI RF Module Ble IoT Solutions Cansec AN2640R2SA-K

2.4Ghz Ble5.0 Module IoT Solutions Cansec An2640R2Sa-K Ti CC2640R2 Ble Module Pcb Antenna

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.8	V
Operating Temperature		-40	-	+85	°C
Current Consumption	Sleep Mode	-	0.1		uA
	Receive mode(@LDO mode)	-	9	-	mA
	Transmit Mode	-	12	-	mA
TX Power		-	3.7	5	dBm
RX Sensitivity		-	-90	-97	dBm
Distance		60			m

Sony Ericsson pioneered this technology before being joined by IBM, Intel, Nokia, and Toshiba in May 1999. Today over 1,000 international electronics manufacturers belong to the Bluetooth® Special Interest Group or SIG. Bluetooth® is named after King Harald Bluetooth of Denmark, who in the 930s consolidated warring factions of Denmark, Norway and Sweden. This ability to establish peaceful communication between differing peoples is a metaphor for the ability to connect devices from differing technologies.

2.4Ghz Ble5.0 Module IoT Solutions Cansec An2640R2Sa-K Ti CC2640R2 Ble Module Pcb Antenna

1. AN2640R2SA‐K Module is designed based on CC2640R2 Bluetooth Smart (Bluetooth® 4.2 and Bluetooth 5) System‐on‐Chip, fully supports the single-mode Bluetooth Low Energy operation.2. The module provides the ability to either put your entire
application into the integrated ARM Cortex M3 microcontroller or
use the module in Network Processor mode in conjunction with the
microcontroller of your choice.

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
