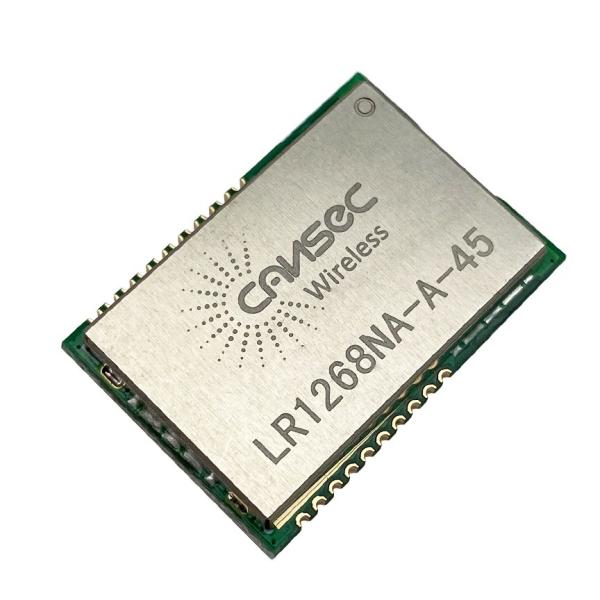

Street Light Water Meter Use Cansec Wireless IoT Module Small Size LR1268Na-G 433Mhz LoRa SX1268 Long Range RF Wireless Module

Parameter		Min	Typ	Max	Unit
Operating Voltage		2.7	-	3.6	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	0.1	-	uA
	Receive mode	-	11.7	-	mA
	Transmit Mode (RFOP =+20dBm, on PA_BOOST)	-	117	-	mA
TX Power (For Carrier)		-	18	20	dBm
RX Sensitivity (For Lora Modulation)		-	-	-139	dBm

Street Light Water Meter Use Cansec Wireless IoT Module Small Size LR1268Na-G 433Mhz LoRa SX1268 Long Range RF Wireless Module

At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.

For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.

​

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 28 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.

We are Beijing JiaAn Electronics Technology, founded in 1994; Taiwan invested.

We are the third-party partner of Texas Instruments and the supplier of Arrow Electronics;

along with over 25 years of experience in the RF industry,

we developed a team with deep technical background,

high performance and quick response timing to co-operate with our clients globally.

About 70 per cent of our clients are overseas, and 80 per cent of our clients are returning customers.

All our products require layers and layers of inspections, testing and quality control procedures before shipping;

Offering our client a trustworthy and long-lasting partnership.
