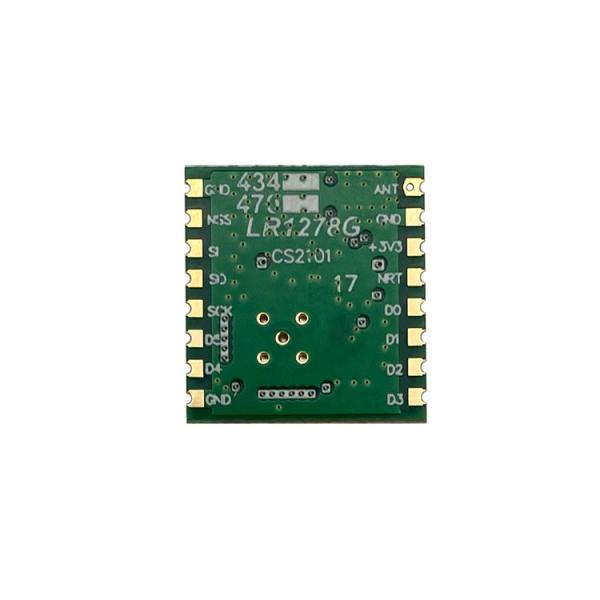

Cansec Semtech SX1278 LoRa Module LR1278Na-G For Logistic Tracking Industry

Ask Lasest Price
Brand Name :	Cansec Wireless
Model Number :	LR1278NA-G
Price :	USD 3.55$ per piece
Payment Terms :	T/T
Supply Ability :	20000000 units per year
Delivery Time :	5-8 weeks

Add to Cart

Product Details
Company Profile

Cansec Semtech SX1278 LoRa Module LR1278Na-G For Logistic Tracking Industry

Small Size IoT RF Transceiver Module LoRa No Antenna Cansec LR1278Na-G SX1278 LoRa Module For Logistic Tracking Industry

Parameter		Min	Typ	Max	Unit
Operating Voltage		2.7	-	3.6	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	0.1	-	uA
	Receive mode	-	11.7	-	mA
	Transmit Mode (RFOP =+20dBm, on PA_BOOST)	-	117	-	mA
TX Power (For Carrier)		-	18	20	dBm
RX Sensitivity (For Lora Modulation)		-	-	-139	dBm

Small Size IoT RF Transceiver Module LoRa No Antenna Cansec LR1278Na-G SX1278 LoRa Module For Logistic Tracking Industry

1. The LR1278NA-G module is designed based on SX1278. The SX1278 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

2. At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM
can improve receiver sensitivity by more than 20dB compared to FSK.

3. LoRaTM also provides significant advances in selectivity and
blocking performance, further improving communication reliability.

Applications
Automated Meter Reading.
Home and Building Automation.
Wireless Alarm and Security Systems.
Industrial Monitoring and Control
Long range Irrigation System

​

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two
years of free after-sales service.
