| Brand Name : | Cansec Wireless |
| Model Number : | LR1262NA-A |
| Price : | USD 4.10$ per piece |
| Payment Terms : | T/T |
| Supply Ability : | 2000000 pieces per year |
| Delivery Time : | 5~8 weeks |

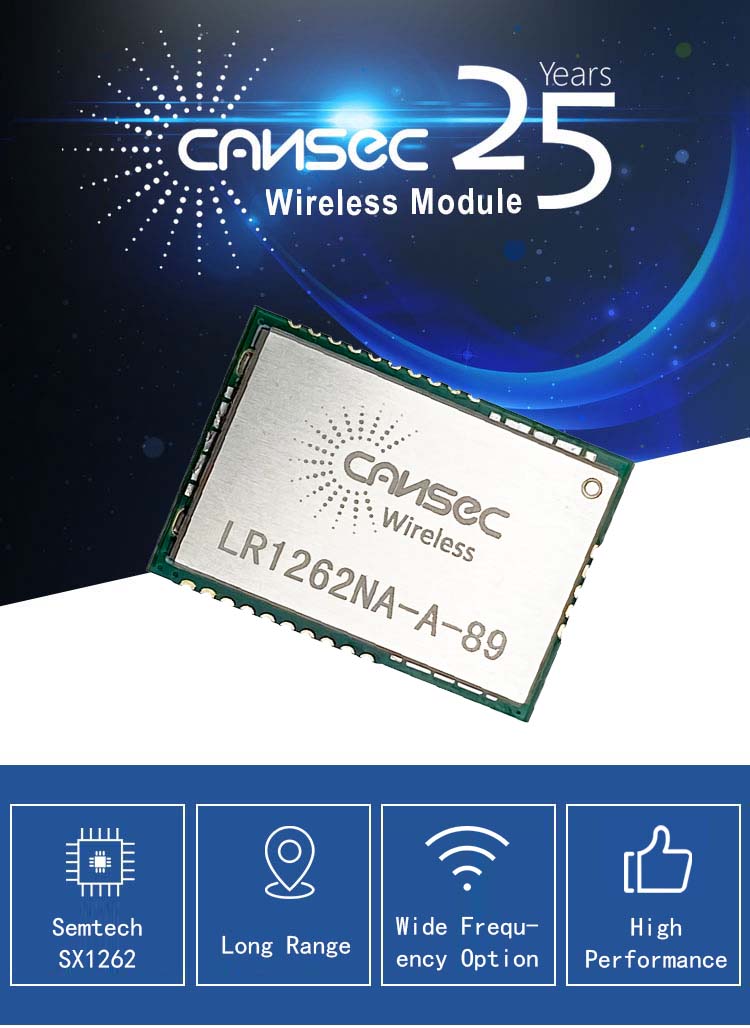

Long Range High-Performance RF Transceiver Module IoT Industrial Solution Cansec LR1262NA-A Semtech-SX1262 LoRa Module 915 Mhz
Long Range High Performance RF Transceiver Module IoT Industrial Solution Cansec LR1262NA-A Semtech-SX1262 LoRa Module 915 Mhz
Features
LoRa and FSK Modem
170 dB maximum link budget
Wide-Supply Voltage: VBAT:1.8 to 3.6V
RF output up to +21 dBm
Programmable bit rate up to 62.5 kbps LoRa and 300 kbps FSK
Integrated DC-DC converter and LDO
High sensitivity: down to -148 dBm
88 dB blocking immunity at 1 MHz offset
Co-channel rejection of 19 dB in LoRa mode
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK and LoRa modulation
Built-in bit synchronizer for clock recovery
Automatic Channel Activity Detection (CAD) with ultra-fast AFC
Regular crystals and TXCO crystals are optional
Preamble detection
Package and Operating Conditions:
3.4 mm Pitch, 17 mm×24.3mm Stamp Package for Easy Assembly and
Low-Cost PCB Design
Operating Temperature Range: -20℃ to +70℃
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two
years of free after-sales service.
|
|
